32M 4 Deck Biomass Roller Veneer Drying Line

Shine newly 4 deck 32m veneer roller dryer has the veneer drying capacity of 6 m³/ h. 4 deck Veneer Dryer is equipped with automatic temperature control and speed regulation system, which can accurately control the final moisture content. Shine biomass veneer dryer has the features of high productivity, energy efficiency, lowest drying cost and perfect drying effect. Biomass burner is our patented products, which can save composite cost mostly. Heat exchanger adopts step by step heat transfer, and the specifications of each section of the heat exchanger is different, and the hot air in the heat exchanger can be uniformly emitted to the veneer. Shine veneer drying line can achieve best drying effect with lowest cost.

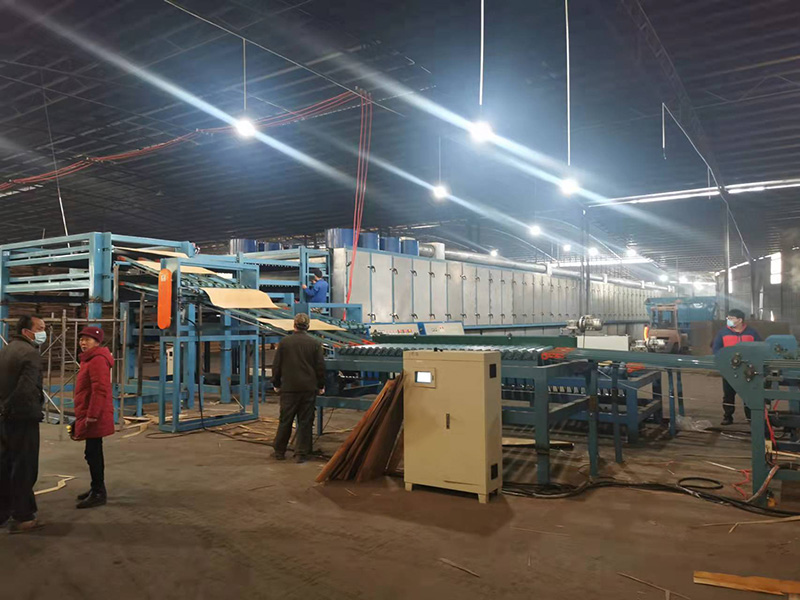

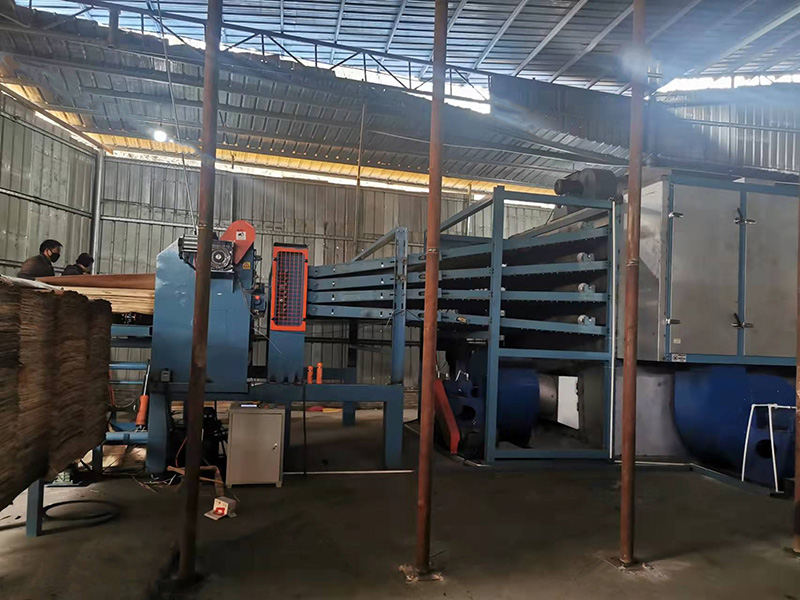

4deck roller veneer dryer

Plywood Veneer Dryer

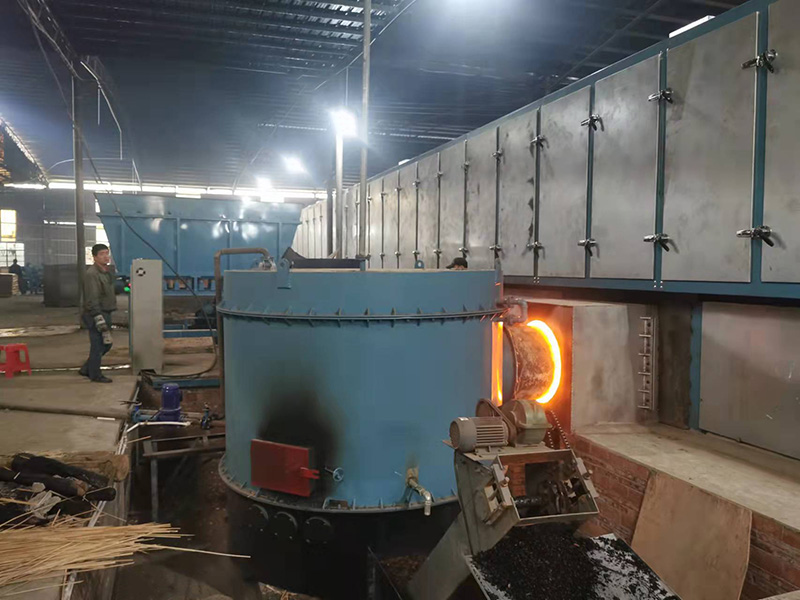

Biomass Veneer Dryer

Main Technical Parameters

Model No

GTH30-32

Working Width

3000mm

Roller material

Q235B,φ102 seamless steel pipe

Heating area length

28m

Cooling area length

Veneer thickness

0.6-8mm

Veneer water moisture

From about 50-80% to about 10%

Heating material & drying temperature

Waste wood, 140-200℃ adjustable. Temperature control accuracy ±5℃. There is automatic temperature control and speed regulation system ,which can guarantee the moisture content is consistent.

Drying capacity (m³/h)

6cbm per day

Veneer transport speed

5-22m/min，16A chain

Hot air blower

Power:11KW（15pc）

Traction motor

Power: 5.5KW（4pc）

Cold air blower

Power: 11KW（1pc）

Air intake fan

Power : 15KW（1pc）

6 ton biomass burner

Power: 21.5KW

Automatic veneer feeding system (optional)

Power :24.2KW

Automatic Veneer collecting system (optional)

Power :6.2KW

Total power

264.9KW

Actual electricity consumption

About 180KW per hour

All specifications,dimensions&design characteristic are subject to change without prior notice.

Main Advantages

1. Shine biomass veneer dryer has the features of high productivity, energy efficiency, lowest drying cost and perfect drying effect. The composite cost is only about $6 -12/cubic meter, which can improve customers’ profit space greatly.

2. The bearings of 4 deck veneer dryer are featured high temperature 500 degree Celsius resistance and low temperature -20 degree Celsius resistance, which no need inject oil and easy maintenance in the daily operation.

Shine heat exchanger adopts step by step heat transfer, and the specifications of each section of the heat exchanger is different, and the hot air in the heat exchanger can be uniformly emitted to the veneer. The veneer after drying has uniform moisture content, flat, no buckle or end waviness; free of splits and the surface is in good condition for gluing.

Shine veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve ideal drying effect. Equipped with automatic veneer feeder and automatic collection system, which not only improves the drying efficiency but also saves labor cost mostly.

5. The veneer after drying has uniform moisture content and it is flat without buckle or end waviness, free of splits and the surface is in good condition for gluing. Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.

6. We have a professional R&D team that can design different models according to customer’s special requirement. Perfect after-sale service system can supply 24h online service, remote operation is available on request, regular customer visits, sufficient spare parts supply in time.
