3 Deck 32M Veneer Roller Dryer with Biomass Burner
 The 3 Deck 32M Veneer Roller Dryer is heated by Biomass Burner and has the drying capacity of 4m3/h. The 3 deck veneer roller dryer is designed to ensure the maximum quality and productivity and highest possible energy efficiency for both furniture and plywood veneer manufacturing. The 3 deck dryer has the higher drying capacity compared to the 1 and 2 deck dryer while pricing is more favorable at the same time compared to 4 deck veneer dryer. FYI, the veneer dryer can also work on the steam boiler or thermal oil heater.

Product Description


The 3 Deck 32M Veneer Roller Dryer is heated by Biomass Burner and has the drying capacity of 4m3/ h. Shine veneer roller dryer is designed to ensure the maximum quality and productivity and highest possible energy efficiency for both furniture and plywood veneer manufacturing. The 3 deck dryer has the higher drying capacity compared to the 1 and 2 deck dryer while pricing is more favorable at the same time compared to 4 deck veneer dryer. Utilizing the biomass burner as the heat source, the total production cost(labor, fuel and electrictiy power) is only USD6-USD12 per cubic meter.

automatic veneer feeder



automatic veneer feeder



veneer allocating roller dryer



3 deck veneer rollers dryer



veneer collection system

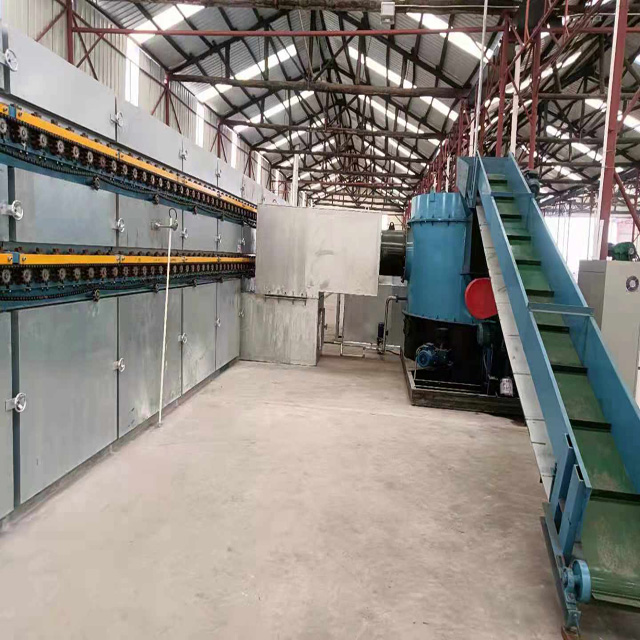

biomass burner



waste wood fuel cost



Shine Veneer Roller Dryer runs without thermal oil heater or steam boiler. It uses waste wood fired air heater/ Biomass Burner which is our new patented product. It eliminates heat loss by directly heating air and supplying to the dryer instead of indirect heating of Oil or water. As the waste wood, waste veneers, tree barks, rind, chips, etc. are the most cost economical fuel compared to the coal, gas, steam or oil and the burning temperature is high enough to dry veneer to a right moisture content level, the shine veneer roller dryer has the lowest drying cost. The temperature in the biomass burner is up to 800 degree celsius and 140-200 degree celsius in the heating section of the dryer, which is enough temperature to remove the extra moisture out of the green veneer.



Main Technical Specifications and Parameters



Model No

GTH30-32

Number of Sections

16

Number of Decks

3

Working Width

3000mm

Roller material

Q235B,φ102 seamless steel pipe

Heating area length

28m

Cooling area length

4m

Veneer thickness

0.6-8mm

Veneer water moisture

From about 50-80% to about 10%

Heating material & drying temperature

Waste wood, 140-200 adjustable. Temperature control accuracy  ±5. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent.

Drying capacity (m³/h)

4m3/ h

Veneer transport speed

5-22m/ min16A chain

Hot air blower

Power:5.5KW14pc

Traction motor

Power: 4KW3pc

Cold air blower

Power: 5.5KW2pc

Air intake fan

Power : 11KW(2pc

6 ton biomass burner

Power: 21.5KW

Automatic veneer feeding system (optional)

Power :24.2kw

Automatic Veneer collecting system (optional)

Power :6.2kw

Total power

173.9KW

Actual electricity consumption

About 130-140kw per hour





Main Advantages of 3 Deck 32m Veneer Roller Dryer



1. Shine biomass veneer dryer has the features of high productivity, energy efficiency, lowest drying cost and perfect drying effect. The composite cost is only about $6-12/cubic meter, which can improve customers' profit space greatly.

2. The biomass burner is Shine patented product. It can burn all kinds of waste wood directly to reduce the drying cost mostly. Compared to steam type or heat conduction oil type veneer dryer, the drying cost is reduced greatly.

3. Shine heat exchanger adopts step by step heat transfer, and the specifications of each section of the heat exchanger are different, and the hot air in the heat exchanger can be uniformly emitted to the veneer. The veneer after drying has uniform moisture content, flat, no buckle or end waviness; free of splits and the surface is in good condition for gluing.

4. Shine veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve and ideal drying effect. Equipped with automatic veneer feeder and automatic collection system, which not only improves the drying efficiency but also saves labor cost mostly.

5. We have a professional R&D team that can design different models according to customer’s special requirement. Perfect after-sale service system can supply 24h online service, remote operation is available on request, regular customer visits, sufficient spare parts supply in time.

6. Roller material is φ102 seamless steel pipe which stands for the better quality.

7. Automatic temperature control and speed regulation system can guarantee the consistent moisture content.

8. The bearings installed for the dryers are featured high temperature 500 degree Celsius resistance and low temperature -20 degree Celsius resistance. Furthermore, no need maintenance in the daily operation.

9. The temperature in the heating chamber of biomass burner heated veneer roller dryer is 40-60℃ higher than steam or thermail oil type veneer dryer, which shortens the drying time and increases the capacity greatly.

10. The automatic feeding and collection system improves the production efficiency and saves the labor cost to the most.

11. 3 deck veneer dryers machine has features of high productivity, energy saving and environmental protection.

12. The veneer drying machine has the minimum electrical and fuel consumption, maximum production, quality than the best and energy efficient as well.

13. The drying capacity is improved greatly by using the continuous 3deck veneer dryers.
