3Deck 26M Mesh Belt Veneer Dryer Machine

Veneer drying line is important machine in plywood processing. When you peeling get fresh veneer, for long stock, need remove water and moisture, so you need core veneer dryer or drying line. Shine 3 deck veneer dryers have the salient features of higher price performance ratio, higher drying capacity. 26m 3 deck mesh belt dryer is suitable for drying thin face veneer, which can dry 2-3m³ veneer per hour. The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.

Product Description

Veneer drying line is important machine in plywood processing. When you peeling get fresh veneer, for long stock, need remove water and moisture, so you need core veneer dryer or drying line. Shine 3 deck veneer dryers have the salient features of higher price performance ratio,higher drying capacity. 26m 3 deck mesh belt dryer is suitable for drying thin face veneer, which can dry 2-3m³ veneer per hour. The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.

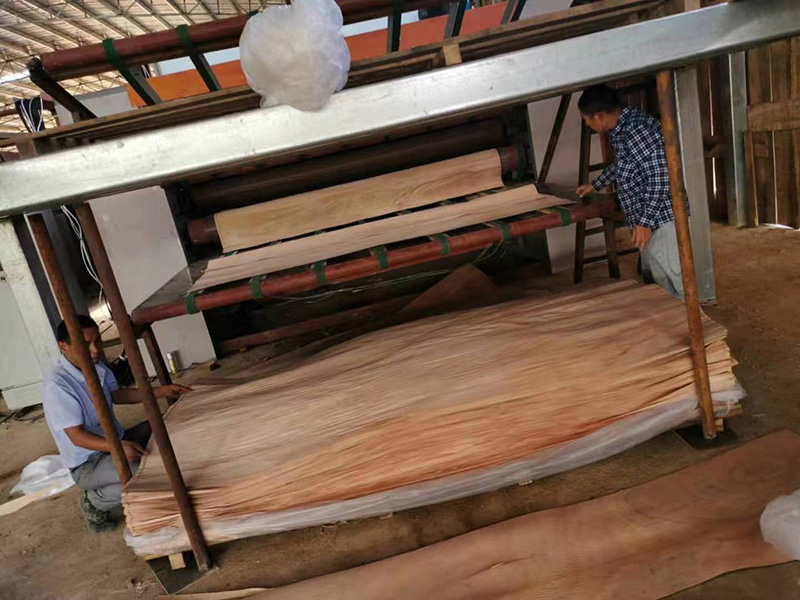

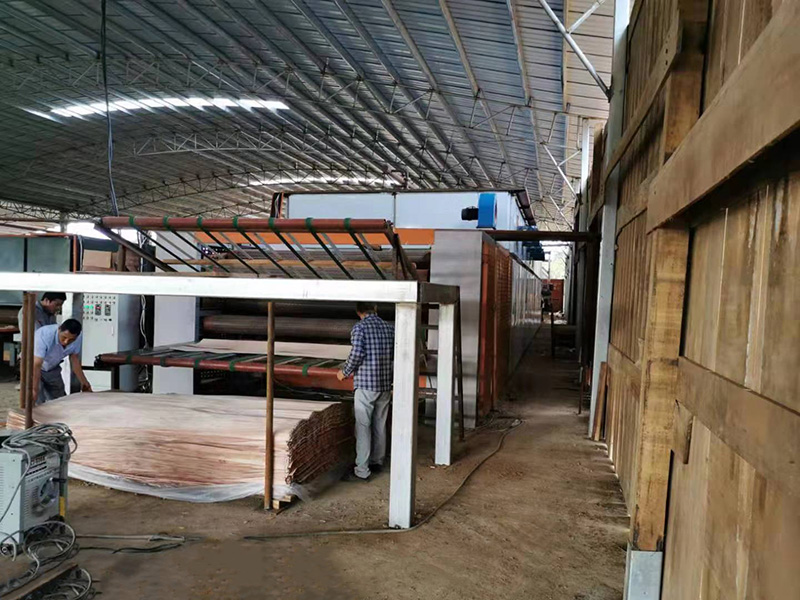

Mesh Belt Veneer Dryer Mesh Belt Veneer Dryers Mesh Belt Veneer Drying Line

Main Technical Parameter

Model No.

Shine-26

Working Width

3000mm

Layers

3 deck

Heating Section

12 sections×2000mm＝18000mm

Cooling Section

1 section×2000mm＝2000mm

Veneer feeding section

3000mm

Veneer discharge section

5000mm

Total Power

81KW

Transmission Motor

4KW (3pcs) ,frequency control

Hot air fan

5.5KW (12pcs)

Cold air fan

3KW (1pc)

Radiator

L 2000mm×W 400mm×H 1500mm (12pcs)

Transmission speed

1-30m/min

Heating Medium

Steam or thermal oil

Drying temperature

150-180℃

Thermal energy consumption

180×10⁴ Kcal Steam 4T

Drying Thickness

0.2-4mm

Initial moisture content

60-80%

Final moisture content

8-12%

Drying capacity(m³/h)

2-3

Mesh belt material

Stainless steel infrared photoelectric off tracking

Mesh dimension

Length 240m ×Width 2.7m

Mesh

25mm×25mm

Roller diameter

89mm

Roller Space

1000mm

Roller Quantity

260pcs

Air Pipe

Length 3000×Width 380×Height 120mm (1mm thickness)

Air Pipe quantity

312pcs

Overall Dimension

L 35m(feeding3m+drying and cooling 27m+discharge 5m)×W 4.36m×H 3.5m

Container

3×40’HQ

Product Advantages

1. Drying slicer veneer, stay log lathe/half round slicer veneer, rotary peeling face veneer.

2. Reliable operation, longer service life, energy efficient and unmatched performance.

3. Mesh belt dryer is a closed-belt dryer. Its feature is that only the feed end and the discharge end are open, and the others are closed. Hot air flows through the equipment and the heat loss is low, which can save a lot of energy.

4. The equipment is flexible in configuration, and there are many materials for drying at one time, and it can be continuously produced and dried, which is convenient to use and greatly reduces labor.

5. The structure is simple, easy to install, can run for a long time, can enter the interior of the box for maintenance when the fault occurs, and the maintenance is convenient.

6. The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.

7. The veneer after drying is free of splits and the surface is in good condition for gluing.

8. Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.

9. The veneer dryer is equipped with automatic control system with merits of saving labor cost, high drying efficiency, easy operation and low failure rate. Main electrical appliances are selected international brands.

10. Less maintenance is required for this type of dryers with no Veneer Jamming leading to lesser Downtime.

11. We have a professional R&D team that can make customized design according to customer’s special requirement.

12. After-sales service: remote operation is available on request, network interactive services, regular customer visits, skilled service team can solve the failure at the first time.
